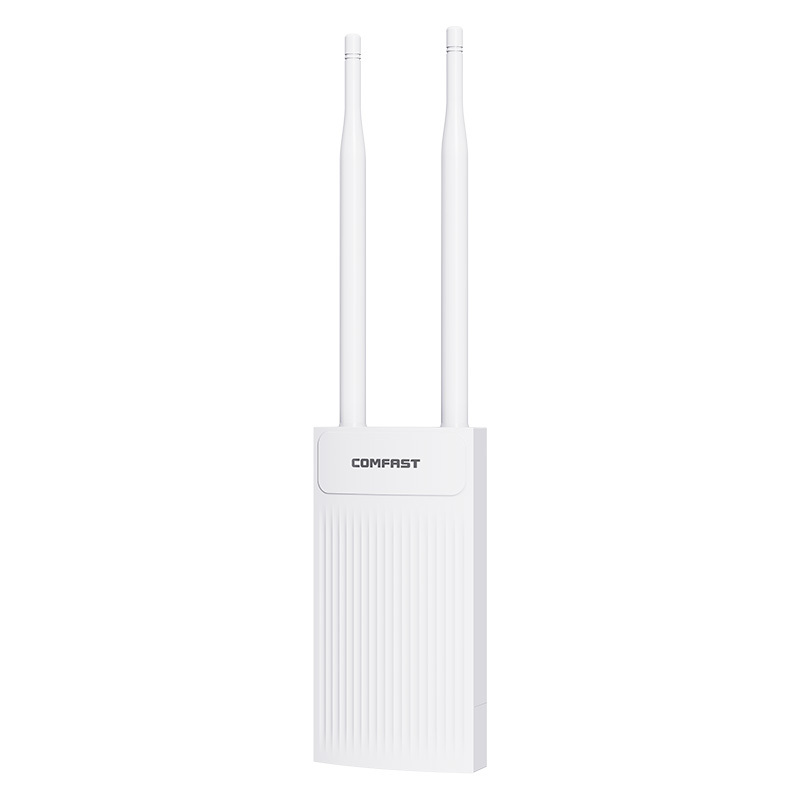

COMFAST AX3000 Outdoor Access Point CPE Router 3000Mbps 2.4G/5.8G Dual-Band Wireless Wi-Fi Gigabit RJ45 Port 48V POE Repeater

Description

CF-EW65 is a high-power outdoor AP with dual band 2974Mbps wireless transmission rate, designed with two high gain antennas,Ensure full signal coverage of 360 °. Rigorous outdoor shell design, waterproof, lightning proof, moisture-proof, and antifreeze. Can be used outdoors WiFi coverage base station, suitable for various outdoor places such as squares, resorts, scenic spots, etc.

Pure white appearance design, simple and elegant

IP66 protection industrial shell waterproof and antifreeze

Wall hanging/pole installation and assembly are simple

Flexible deployment of 48VPoE power supply points

ABS material is heat-resistant and compressive resistant

The work indicator light is convenient for observing the working status of the equipment

Specifications:

RTL8198D-VG1-CG+RTL8192XBR+RTL8832CR-VD brand chip solution, with stable performance;

2.4GHz&5.8GHz dual band signals are more stable and efficient in anti-interference;

48V standard PoE power supply ensures safety and makes construction more convenient;

2974Mbps wireless speed for high-speed transmission, providing a better internet experience;

The wireless protocol standard supports the IEEE 802.11a/b/g/n/ac/ax protocol;

High gain antenna provides strong signal and 360 degree all-round coverage;

Hardware specifications: RTL8198D-VG1-CG+RTL8192XBR+RTL8832CR-VD chip solution

Wireless standard: Supports IEEE802.11a/b/g/n/ac/ax standards

Memory Flash: Memory: 128MB; Flash: 16MB

Modulation techniques: BPSK, QPSK, CCK, 0FDM, 16-QAM, 64-QAM, 256-QAM, 1024-QAM

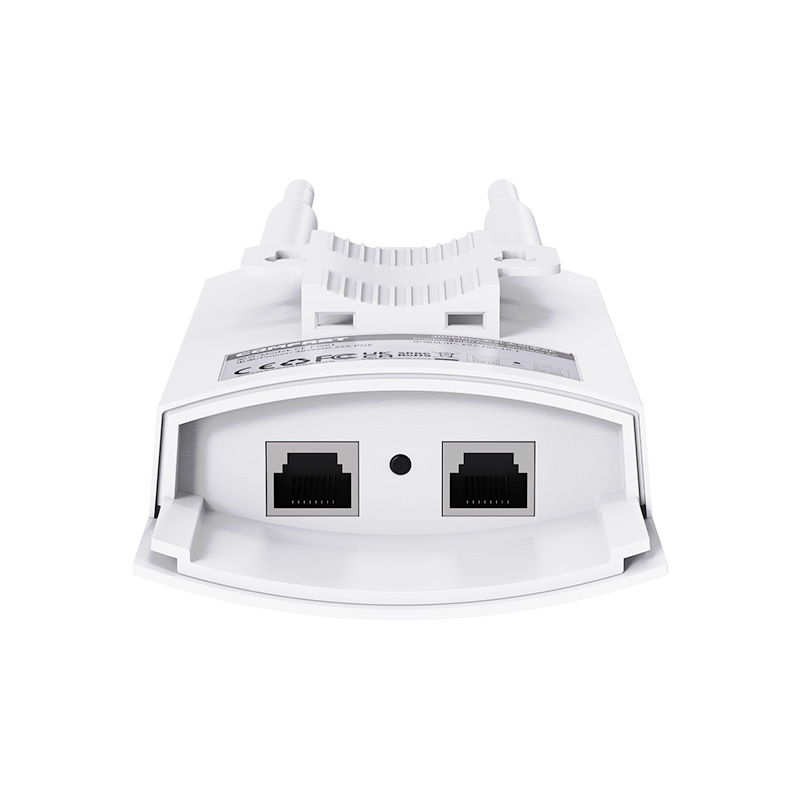

Physical interface: 1 10/100/1000Mbps RJ45LAN Ethernet port: 1 10/100/100Mbps RJ45WAN Ethernet port: 1 RESET reset button

Wireless speed: 2.4GHz: 574Mbps; 5.8GHz:2400Mbps

Antenna gain: 2 * 2400-2500MHz/5150-5850MHz: 5dBi

Power parameters: POE48V/0.32A

Maximum power consumption: 11W

MTBF：>25000h

Protection level: WPA/WPA2/WPA3

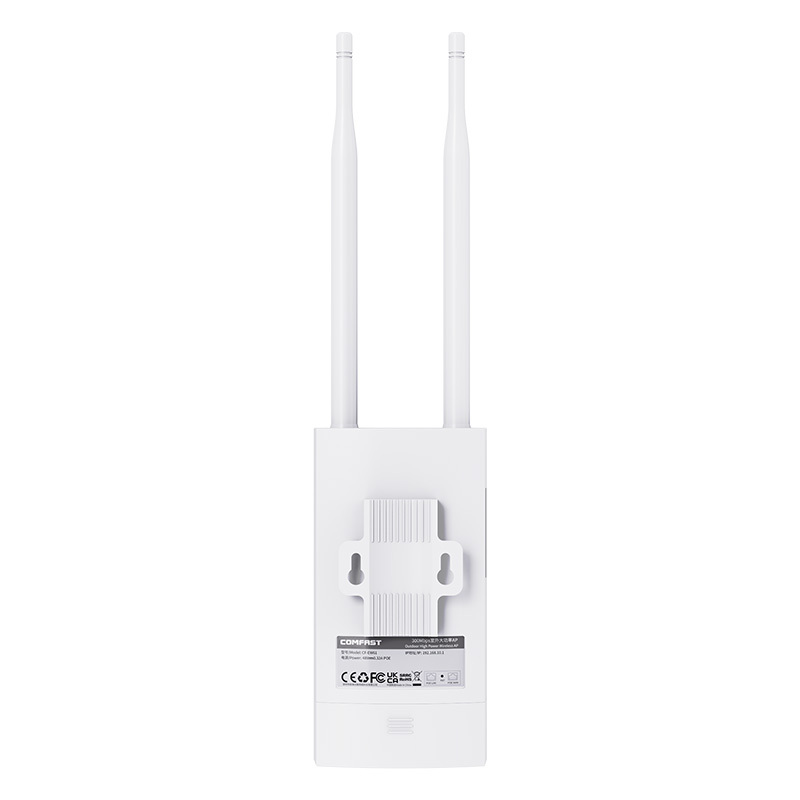

Installation method: wall mounted, pole mounted installation

Product size: IP66 plastic shell, external dimensions 353 * 85 * 44mm; (manual measurement may have errors, for reference only)

Indicator lights: power light, network port light, WiFi light

Packing List:

1* Outdoor AP
1* 48V POE Power Adater
1* 1.5M Network Cable
2* Screws
2* Stainless lock tie
1* User manual
1* Warranty Card

Fast WiFi6,Stable Coverage
AX3000 High Power Outdoor AP
